Industrial Dual-SIM 5G Router with 5x LAN, Wi-Fi 6, GNSS & PoE
The Robustel R5030 is an industrial 5G router built for high-performance connectivity in vehicles and at the edge.
It supports global 5G/4G/3G bands and 3GPP Release 15/16, pairing cellular backhaul with dual-band Wi-Fi 6 in AP or Client mode for dense user environments.
Captive portal and dedicated GNSS suit fleet and passenger Wi-Fi deployments, while Ethernet or Wi-Fi can serve as primary access with automatic failover to 5G/4G for continuity.
Security and interoperability are enterprise-grade with IPsec, DMVPN and more, and operations scale through RCMS for centralized monitoring, configuration, and updates. A compact metal enclosure with DIN-rail or wall mounting simplifies installation in cabinets and vehicles.
The result is fast, resilient 5G with modern Wi-Fi that’s straightforward to deploy and manage across transit fleets, venues, and branch sites.
Features
- Industrial 5G router
- 5G/4G/3G cellular connections
- Supports Ethernet, Wi-Fi and 5G/4G internet with auto-failover
- Dual-band Wi-Fi 6 supported in both AP and Client mode
- Dedicated GNSS
- Captive portal support
- Fully programmable operating system with a well-documented SDK
- Multiple VPN options available including DMVPN, IPsec, and more
- Free cloud management platform (RCMS)
- Robust metal enclosure with a compact design for DIN-rail and wall mounting
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The R5030 is an industrial-grade 5G router that provides cutting-edge wireless connectivity with dual-band Wi-Fi 6 support. It is powered by our proven high-performance CPU platform and RobustOS - an operating system independently developed by Robustel. This OS features enterprise-grade security that has been validated through comprehensive third-party penetration testing. Compliant with 3GPP Release 15/16 standards, the R5030 is designed for the following applications:
Passenger Wi-Fi Solutions: Delivering seamless onboard connectivity to enhance passenger experience through high-density mobile access
- • Advanced Captive Portal: Enables secure user authentication and customized service delivery for public transit networks.
- • High-Speed Connectivity: Ensures reliable internet access via concurrent 5G NSA/SA and Wi-Fi 6, ideal for streaming, work, and communication on the go.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
|
R5030-A-5G-A30EU EMEA + APAC |
5G NR NSA/SA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 4G LTE FDD: B1/3/5/7/8/20/28/32/71 4G LTE TDD: B38/40/41/42/43 3G: B1/5/8 |
CE*, UKCA*, RCM*, E-Mark* | A015400001 |
1 x Router (B Code: B015400001) 1 x Power Plug Converter 1 x Wall Mounting Kit |
|
R5030-A-5G-A30EU EMEA + APAC |
5G NR NSA/SA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 4G LTE FDD: B1/3/5/7/8/20/28/32/71 4G LTE TDD: B38/40/41/42/43 3G: B1/5/8 |
CE*, UKCA*, RCM*, E-Mark* | A015400002 |
1 x Router (B Code: B015400001) 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter 1 x Wall Mounting Kit |
|
R5030-B-5G-A30EU EMEA + APAC |
5G NR NSA/SA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 4G LTE FDD: B1/3/5/7/8/20/28/32/71 4G LTE TDD: B38/40/41/42/43 3G: B1/5/8 |
CE*, UKCA*, RCM*, E-Mark* | A015400003 |
1 x Router (B Code: B015400002) 1 x Power Plug Converter 1 x Wall Mounting Kit |
|
R5030-B-5G-A30EU EMEA + APAC |
5G NR NSA/SA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 4G LTE FDD: B1/3/5/7/8/20/28/32/71 4G LTE TDD: B38/40/41/42/43 3G: B1/5/8 |
CE*, UKCA*, RCM*, E-Mark* | A015400004 |
1 x Router (B Code: B015400002) 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter 1 x Wall Mounting Kit |
|
R5030-A-5G-A43EA EMEA + APAC |
5G NR NSA: n1/3/7/28/38/40/41/77/78 5G NR SA: n1/3/5/7/8/20/28/38/40/41/66/77/78 4G LTE FDD: B1/2/3/4/5/7/8/20/28/66 4G LTE TDD: B38/40/41 3G: B1/2/5/8 |
CE*, UKCA*, RCM* | A015400005 |
1 x Router (B Code: B015400003) 1 x Power Plug Converter 1 x Wall Mounting Kit |
|
R5030-A-5G-A43EA EMEA + APAC |
5G NR NSA: n1/3/7/28/38/40/41/77/78 5G NR SA: n1/3/5/7/8/20/28/38/40/41/66/77/78 4G LTE FDD: B1/2/3/4/5/7/8/20/28/66 4G LTE TDD: B38/40/41 3G: B1/2/5/8 |
CE*, UKCA*, RCM* | A015400006 |
1 x Router (B Code: B015400003) 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter 1 x Wall Mounting Kit |
|
R5030-A-5G-A25GL Global |
5G NR NSA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79 5G NR SA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79 4G LTE FDD: B1/2/3/4/5/7/8/12(B17)/13/14/18/19/20/25/26/28/29/30/32/66/71 4G LTE TDD: B34/38/39/40/41/42/43/48 4G LTE LAA: B46 3G: B1/2/3/4/5/6/8/19 |
– | A015400007 |
1 x Router (B Code: B015400004) 1 x Power Plug Converter 1 x Wall Mounting Kit |
|
R5030-A-5G-A25GL Global |
5G NR NSA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79 5G NR SA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79 4G LTE FDD: B1/2/3/4/5/7/8/12(B17)/13/14/18/19/20/25/26/28/29/30/32/66/71 4G LTE TDD: B34/38/39/40/41/42/43/48 4G LTE LAA: B46 3G: B1/2/3/4/5/6/8/19 |
– | A015400008 |
1 x Router (B Code: B015400004) 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter 1 x Wall Mounting Kit |
Application
Specification
System Architecture
| Operating System | RobustOS |
| CPU | Dual-core ARM Cortex A53, 1.0 GHz |
| RAM | 512 MB |
| Flash | 8 GB eMMC |
Cellular
| Supported Technologies | 5G, 4G/LTE, 3G, 2G |
| Antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 5 x 10/100/1000 Mbps, 1 x WAN + 4 x LAN, or 5 x LAN optional |
| Magnet Isolation Protection | 1 KV |
PoE In
| PoE Ports | ETH0 |
| PoE Standards | IEEE 802.3at – 42.5–57 V DC |
Digital Input/Output
| DI/DO Ports | 1 x DI + 1 x DO, wet contact |
| Connector | 4-pin Micro-Fit socket (shared with the power supply) |
| Absolute Maximum VDC | +30 V DC (DI), +30 V DC (DO) |
| Absolute Maximum ADC | 100 mA (DO) |
| Signal Definition |
DI, DO, – (Power Minus is also referred to as DI/DO Minus) |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac/ax, 2 x 2 MIMO, supporting AP and Client modes |
| Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) 5.15 ~ 5.825 GHz (5 GHz ISM band) |
| Security | WPA, WPA2, WEP, WPA3 |
| Encryption | AES, TKIP |
GNSS/GPS (Optional)
| GNSS Antennas | 1 |
| Connector | SMA-K |
| GNSS Frequency |
GPS: L1, L5 QZSS: L1, L5 Galileo: E1, E5a GLONASS: L1OF BDS: B1 |

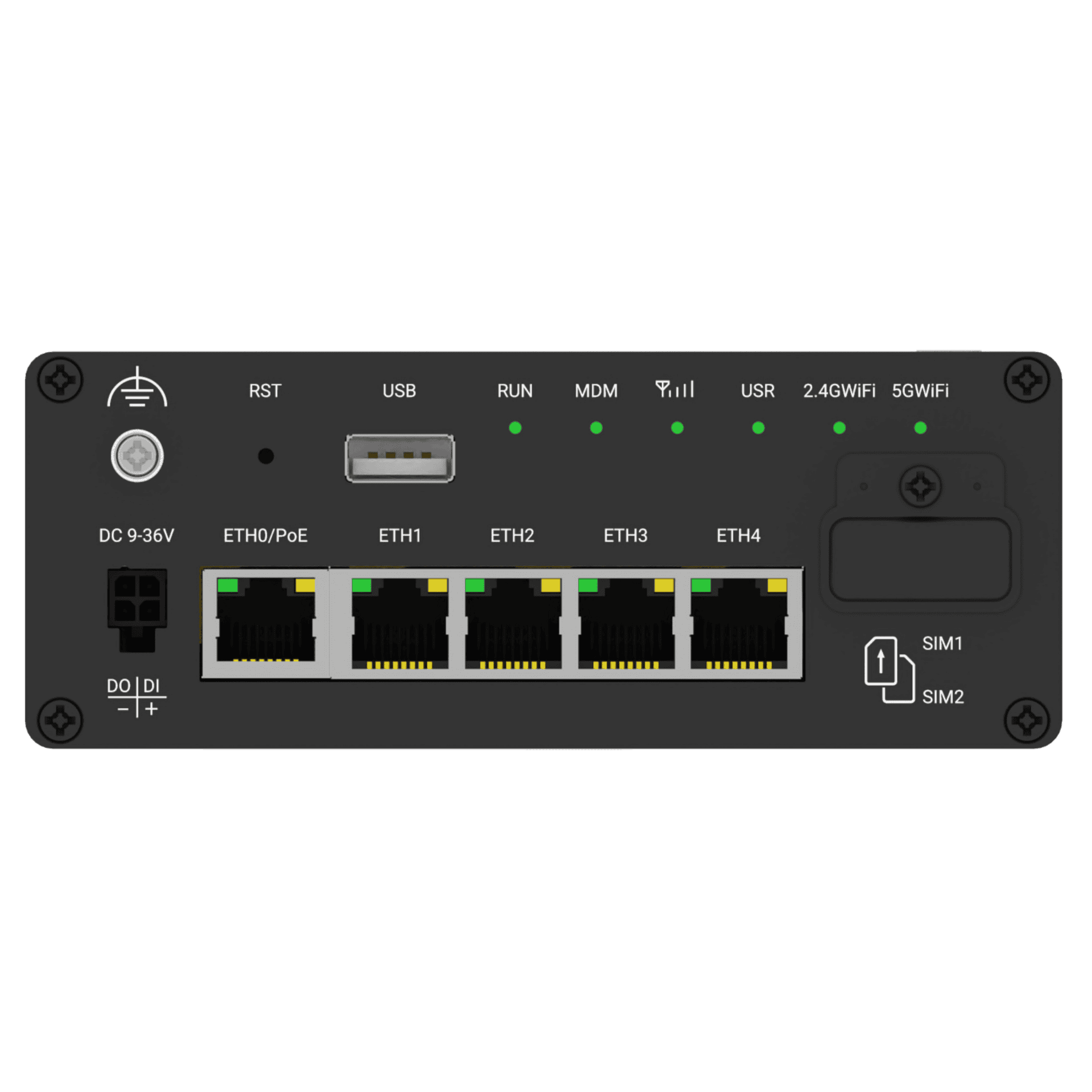

Other Interfaces
| Reset Button | 1 x RST |
| LED Indicators | 1 x RUN, 1 x MDM, 1 x RSSI, 1 x USR, 1 x 2.4G Wi-Fi, 1 x 5G Wi-Fi |
| Watchdog | External |
| USB | 1 x USB 2.0 (Host), Type A, 5 V, 500 mA |
Power Supply & Consumption
| PSU Connector | 4-pin Micro-Fit socket |
| Input Voltage |
12/24 V DC, 9 ~ 36 V DC Reverse polarity protection, surge protection |
| Power Consumption |
Idle: 6 W @ 24 V Max: 16.5 W @ 24 V |
| Recommended Power Supply | 24 V DC / 1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 581 g |
| Dimensions | 49 x 105 x 128 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -20 – +70 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 6.5GB |
| RAM available for SDK | 128MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| Testing |
IEC 60068-2-6 (Sinusoidal Vibration) IEC 60068-2-27 (Mechanical Shock) IEC 60068-2-64 (Random Vibration) |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 ISO 7637-2 (Surge) Level 3 |
