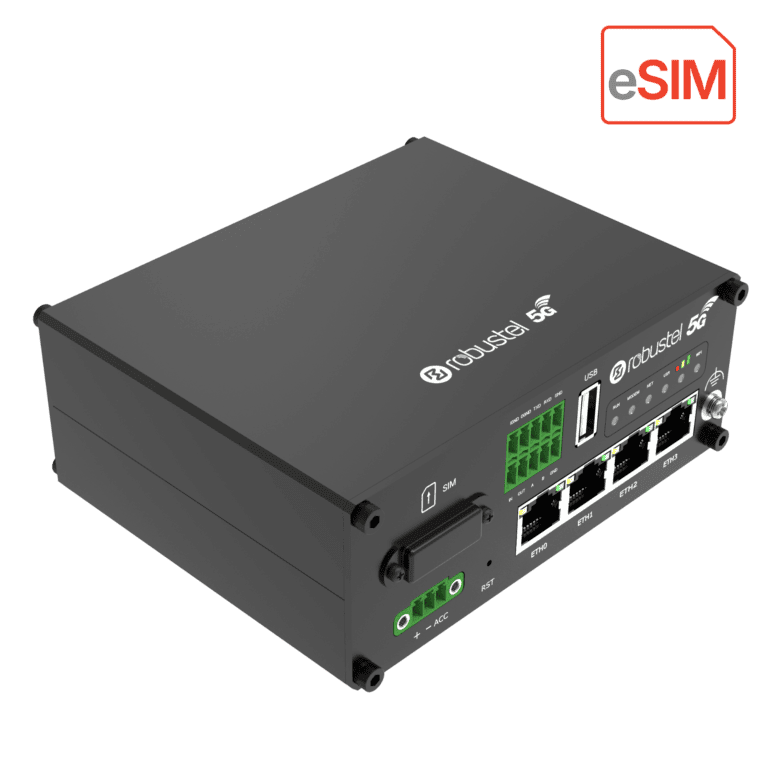

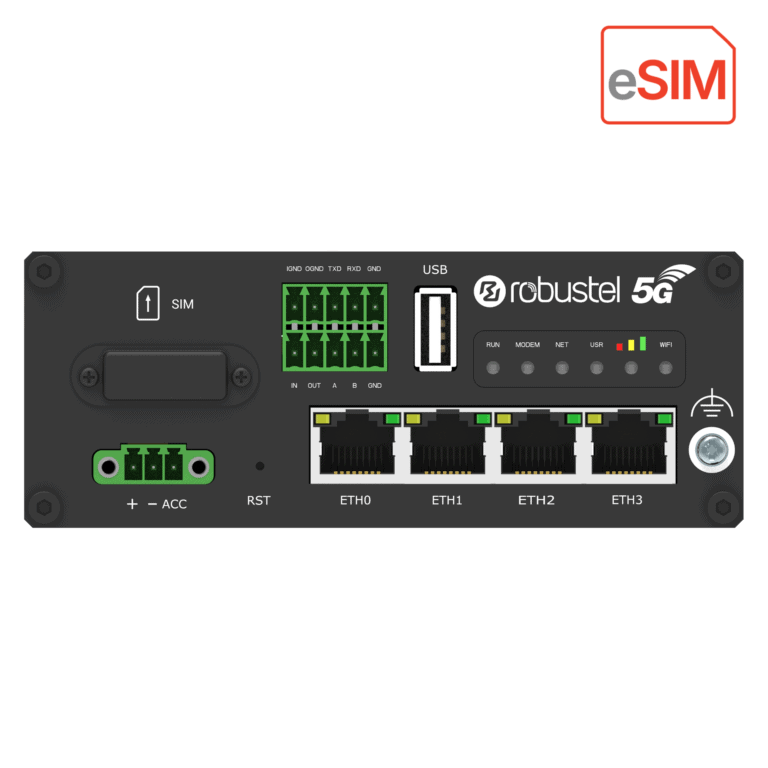

R5020e eSIM Router
R5020e eSIM Router
Industrial Dual-SIM 5G Router with 1x eSIM/eUICC, 1x 2FF SIM, 4x LAN, Serial, GNSS & PoE
The Robustel R5020e is an industrial 5G router designed for high-speed cellular connectivity in distributed IoT, enterprise, and industrial networking applications where remote SIM lifecycle management is a major operational requirement.
Built on the proven R5020 platform, the R5020e combines global 5G/4G/3G cellular support with a hybrid 1 × Mini SIM + 1 × MFF2 eSIM architecture. This gives organisations a practical way to deploy cellular routers across regions, manage connectivity profiles remotely, and reduce the need for physical SIM handling during rollout, service changes, or long-term fleet maintenance.
For network integration, the R5020e provides 4 × Gigabit Ethernet ports, configurable as 4 × LAN or 1 × WAN + 3 × LAN, plus Wi-Fi 5, RS-232, RS-485, 1 × DI, 1 × DO, optional GNSS, and 802.3at PoE-PD support on ETH0. Built on RobustOS, it supports common industrial networking functions including VPN tunnels, routing, firewall features, Modbus RTU to TCP, Smart Roaming V3, and RCMS-based remote management.
The result is a high-speed industrial 5G router for organisations that need more than cellular performance alone: they need reliable connectivity, flexible carrier profile management, and a scalable way to operate routers across regions, sites, and lifecycle stages.
Features
- Global 5G/4G/3G cellular connections
- Supports Ethernet, Wi-Fi and 4G/5G internet with auto-failover
- Cost-effective industrial 5G router solution
- Fully programmable operating system with a well-documented SDK
- Multiple VPN options available including DMVPN & IPSec
- GNSS, ignition sense & E-mark features make the R5020 ideal for vehicles
- Free cloud management platform (RCMS)
- Robust metal enclosure with a compact design for DIN-rail and wall mounting
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The R5020 is Robustel’s first 5G-capable router supporting global 5G, 4G, and 3G bands. It leverages a proven high-performance CPU platform and RobustOS – a mature and stable operating system developed in-house by Robustel. The R5020 is compliant with 3GPP Release 15 and is designed for the following applications:
In-vehicle Applications: Whether for passenger Wi-Fi, CCTV monitoring, ticketing, or other onboard requirements, the R5020 provides a simple and effective solution to enhance internet speeds and future-proof existing installations. It has achieved E-Mark certification for in-vehicle use and supports GNSS positioning. A version with vehicle ignition sensing is also available to protect vehicle batteries when the engine is off.
Broadband Failover: The R5020 can be configured to use Ethernet or Wi-Fi as the primary internet connection, with automatic failover to 4G/5G in the event of an outage. This provides resilience for establishments such as retail shops and small offices at a reasonable cost, ensuring sufficient bandwidth for multiple users. It supports IPsec, DMVPN, and OpenVPN protocols for secure connections to core networks.
Primary Broadband: Cellular networks now offer unlimited 5G plans at competitive prices, delivering hundreds of Mbps of internet connectivity wirelessly. For many users, the opportunity to eliminate wired connections and utilize a wireless internet solution can be both technically and commercially advantageous.
The Robustel Cloud Manager Service (RCMS) is a unified cloud-based platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|
R5020e-5G-A25GL-B Global |
5G NR NSA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 5G NR SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 4G LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 4G LTE TDD: B34/38/39/40/41/42/43/48 4G LTE LAA: B46 3G: B1/2/4/5/8/19 |
CE*, UKCA* | A006400813 |
1 x Router (B Code: B006400815) 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x Power Adapter 1 x Wall Mounting Kit |
|
R5020e-5G-A25GL-B Global |
5G NR NSA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 5G NR SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 4G LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 4G LTE TDD: B34/38/39/40/41/42/43/48 4G LTE LAA: B46 3G: B1/2/4/5/8/19 |
CE*, UKCA* | A006400814 |
1 x Router (B Code: B006400815) 1 x Wall Mounting Kit |
Application
Specification
System Architecture
| Operating System | RobustOS |
| CPU | Dual-core MIPS, 880 MHz |
| RAM | 512 MB |
| Flash | 32 MB |
Cellular
| Supported Technologies | 5G, 4G/LTE, 3G, 2G |
| Antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector | SMA-K |
| SIM | 1 x Mini SIM (2FF) |
| eSIM | 1 x eSIM/eUICC (MFF2); GSMA SGP.22 compliant; supports profile download/removal and typically up to 8 eSIM profiles |
Ethernet
| Ethernet Ports | 4 x 10/100/1000 Mbps, 4 x LAN by default, configurable as 1 x WAN + 3 x LAN |
| Magnet Isolation Protection | 1 kV |
PoE In (Optional)
| PoE Ports | ETH0 |
| PoE Standards | 802.3at PD |
Serial Port
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 5-pin 3.5 mm female socket |
| Baud Rate | 300–115200 bps |
| Signal Definition |
RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) |
Digital Input/Output
| DI/DO Ports | 1 x DI + 1 x DO, wet contact |
| Connector | 2 x 5-pin 3.5 mm female socket |
| Isolation | 3.75 kVDC (opto-isolator) |
| Absolute Maximum VDC | +30 VDC (DI), +30 VDC (DO) |
| Absolute Maximum ADC | 100 mA (DO) |
| Signal Definition | IN, OUT, IGND, OGND |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac; 2 x 2 MIMO; supports AP and client modes |
| Frequency Bands |
2.412–2.472 GHz (2.4 GHz ISM band) 5.15–5.825 GHz (5 GHz ISM band) |
| Security | WPA, WPA2, WEP, WPA3 |
| Encryption | AES, TKIP, WEP64 |
GNSS/GPS (Optional)
| GNSS Antennas | 1 (ANT3, Multiplexing Cellular Antenna) |
| Connector | SMA-K |
| GNSS Frequency |
GPS: L1, L5 QZSS: L1, L5 Galileo: E1, E5a GLONASS: L1OF BDS: B1 |
| Horizontal Position Accuracy | < 2 m |
Other Interfaces
| Reset Button | 1 x RST |
| LED Indicators | 1 x RUN, 1 x MODEM, 1 x NET, 1 x USR, 1 x RSSI, and 1 x Wi-Fi |
| Watchdog | Built-in |
| USB | 1 x USB 2.0 (Host), Type A, 5 V, 500 mA |
Power Supply & Consumption
| PSU Connector | 3-pin 3.5 mm female socket with lock |
| Input Voltage |
12/24 VDC, 9–36 VDC 42.5–57.0 V (PoE-PD@ETH0) Reverse polarity protection, surge protection |
| Power Consumption |
Idle: 5.5 W@12 V Max: 12.5 W@12 V |
| Recommended Power Supply | 24 V DC / 1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 500 g |
| Dimensions | 48 x 100 x 125 mm |
| Installation Options | Desktop, Wall Mount and 35 mm DIN Rail |
| Operating Temperature |
-20 to +55 °C (normal operation) -25 to +70 °C (extended operation) |
| Storage Temperature | -40 to +85 °C |
| Relative Humidity | 5–95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, ARP, VLAN, ICMP, NAT, TCP, UDP, DHCP, DNS, DDNS, NTP, HTTP, HTTPS, Telnet, SSH2, SMTP, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, WireGuard |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming V3, eSIM Management, etc. |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Routing, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++, Python, Java, Node.js, etc. (for users to develop their own applications) |
| Flash Available for SDK | 5 MB |
| RAM Available for SDK | 256 MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0, WEEE |
| EMI |
EN 55032 Conducted Emission Class A EN 55032 Radiated Emission Class A |
| EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 3 EN 61000-4-5 (Surge) Level 3 AC Mains Power Port; Level 3 Signal Ports EN 61000-4-6 (CS) Level 3 EN 61000-4-11 (Dips) Class 2 |
