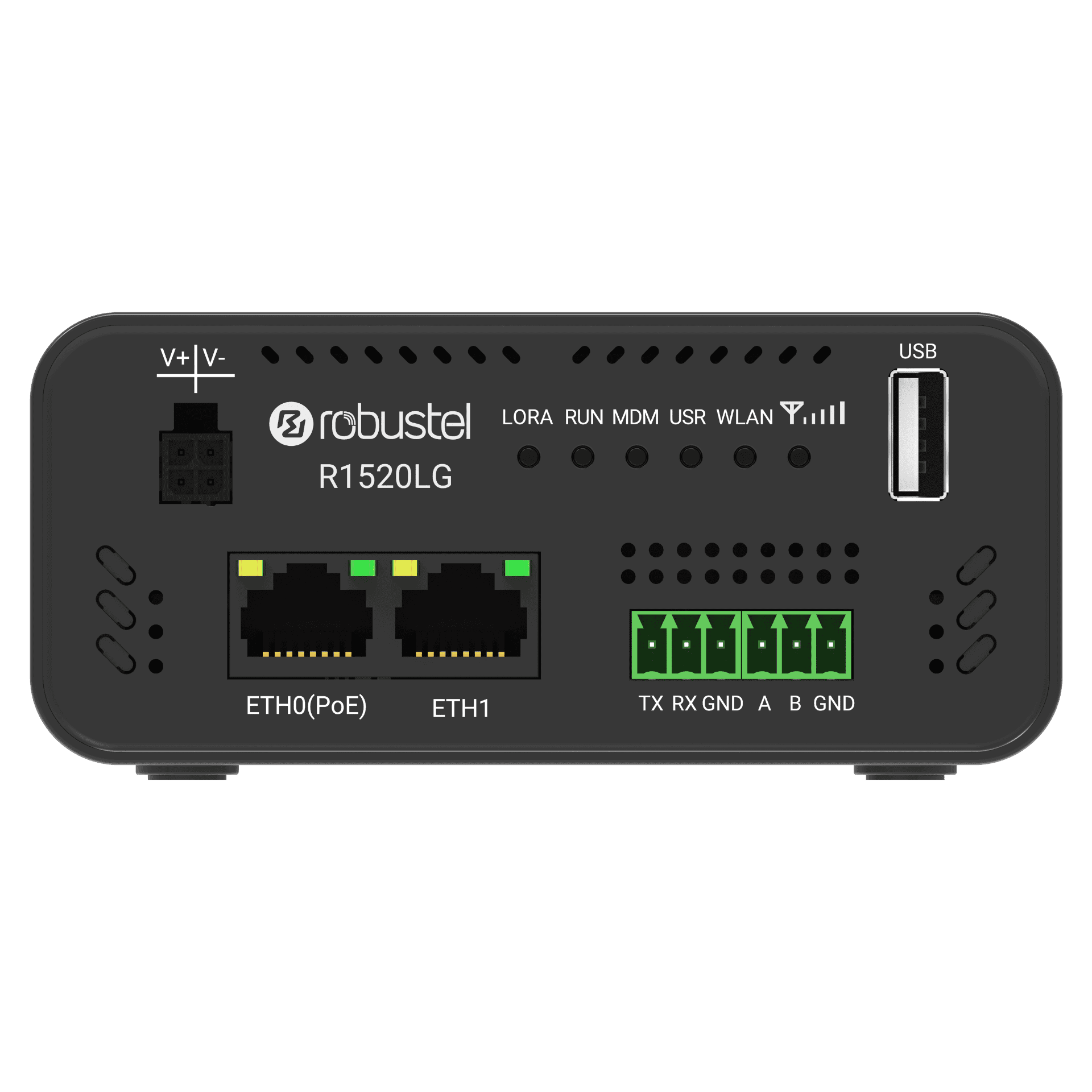

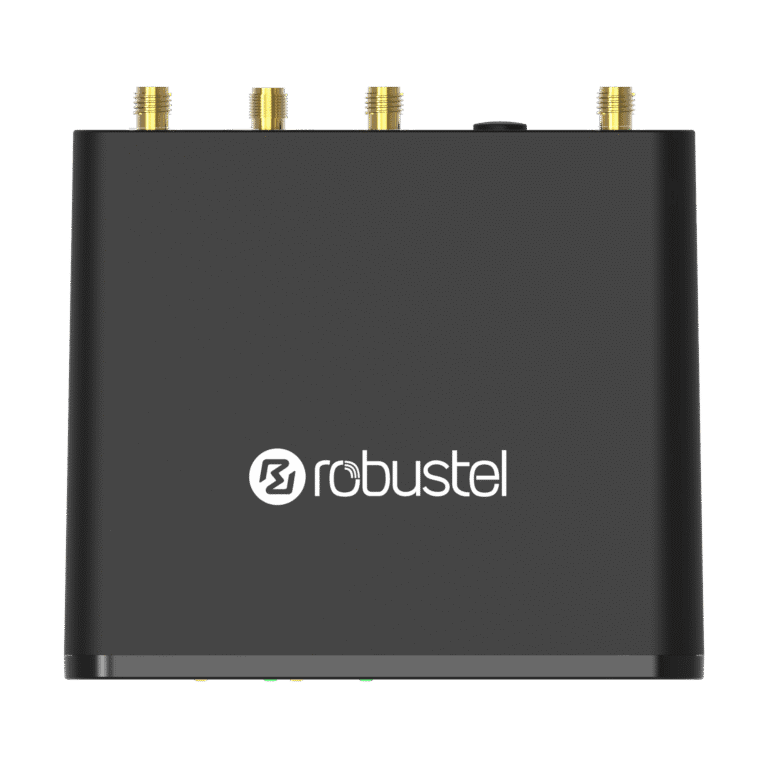

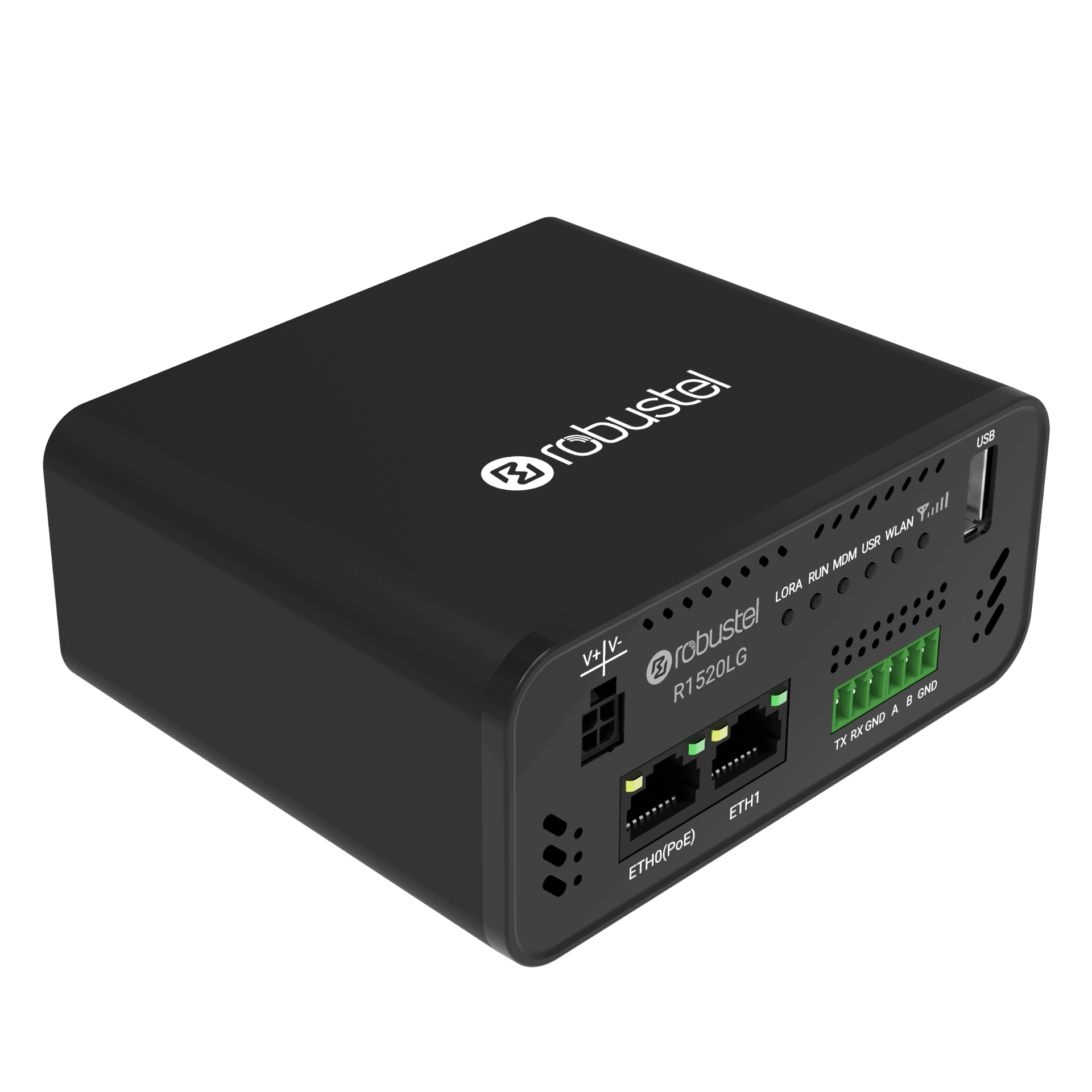

R1520LG
R1520LG
LoRaWAN gateway with 4G/LTE, Wi-Fi and integrated LNS.
The Robustel R1520LG is an industrial LoRaWAN gateway engineered for building-scale and plant deployments. It combines 4G/LTE cellular and Wi-Fi backhaul with PoE-PD power, letting you place the gateway where RF performance is best.
Deploy with your preferred architecture: connect to external LNS platforms via UDP, LoRa Basics™ Station, or LORIOT. Alternatively run the embedded ChirpStack server for full on-device control and send data straight to AWS or Azure using the Edge2Cloud ChirpStack connector with built-in buffering.
Two Ethernet ports (WAN/LAN), dual-SIM, and RS-232/RS-485 simplify integration with existing controllers and BMS/SCADA networks.
Based on Debian Linux, the R1520LG can also host applications and when paired with Edge2Cloud Modbus, aggregate wired and LoRa sensors at the edge. Fleet operations are streamlined through RCMS Device Management and RobustVPN allows secure remote access from anywhere in the world.
Features
- Support PoE-PD for optimal gateway location
- Wi-Fi client and AP modes
- Wide power input ranging from 9 to 60V DC
- Dual Ethernet ports for WAN and LAN connections
- Dual SIM slots for resilient cellular communication
- RS-232 and RS-485 ports for peripheral connection
- Utilize the “Operations Console” for robust gateway management
- Offer RobustVPN for easy remote access to all gateways, regardless of SIM or internet connection type
- Integrate "E2C Chirpstack" for seamless LoRa data connectivity to AWS/Azure or other cloud platforms
- Enable data buffering for LoRa data via "E2C Chirpstack,"" a feature not typically found in standard LoRa gateways
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The R1520LG is Robustel’s innovative LoRaWAN gateway, specifically engineered for highvolume in-building applications. Combining cost-effectiveness with exceptional versatility, this gateway addresses a wide range of deployment scenarios, including:
- • External LoRa Network Server (LNS): Choose from multiple packet forwarders such as UDP, Basic Station, or Loriot for tailored connectivity solutions.
- • Internal LoRa Network Server (LNS): Utilize ChirpStack for comprehensive customer control over your network..
- • Enhanced Internal LNS: Our unique "E2C ChirpStack" integration, a pioneering feature, offers seamless connectivity options.
- • Direct Cloud Integration: The E2C ChirpStack software connector enables LoRa sensors to connect directly to AWS and Azure cloud environments, simplifying data management.
- • Dual Functionality: E2C ChirpStack can be paired with E2C Modbus within the R1520LG, allowing easy data aggregation from both wired and wireless sensors into the cloud.
The Robustel Cloud Manager Service (RCMS) is a unified cloud-based platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance.
Available Models
| Model | Supported Frequency Bands | Supported LoRa Frequency | Certifications | Order Code | Package Contents |
|---|---|---|---|---|---|
|
R1520LG-AB-4L-A35GL EU 512MB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
863 ~ 870 MHz | CE | A013700011 |
1 x Gateway (B Code: B137002) 1 x Wall Mounting Kit |
|
R1520LG-AB-4L-A35GL EU 512MB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
863 ~ 870 MHz | CE | A013700004 |
1 x Gateway (B Code: B137002) 2 x Cellular Antenna 1 x Wi-Fi Antenna 1 x LoRa Antenna 1 x Power Plug Converter 1 x Wall Mounting Kit |
|
R1520LG-AB-4L-A35GL EU 1GB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
863 ~ 870 MHz | CE | A013700017 |
1 x Gateway (B Code: B013700012) 1 x Wall Mounting Kit |
|
R1520LG-AB-4L-A35GL EU 1GB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
863 ~ 870 MHz | CE | A013700018 |
1 x Gateway (B Code: B013700012) 2 x Cellular Antenna 1 x Wi-Fi Antenna 1 x LoRa Antenna 1 x Power Plug Converter 1 x Wall Mounting Kit |
|
R1520LG-AC-4L-A35GL AU 512MB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
915 ~ 928 MHz | RCM | A013700012 |
1 x Gateway (B Code: B137003) 1 x Wall Mounting Kit |
|
R1520LG-AC-4L-A35GL AU 512MB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
915 ~ 928 MHz | RCM | A013700005 |
1 x Gateway (B Code: B137003) 2 x Cellular Antenna 1 x Wi-Fi Antenna 1 x LoRa Antenna 1 x Power Plug Converter 1 x Wall Mounting Kit |
|
R1520LG-AD-4L-A35GL NA 512MB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
902 ~ 928 MHz | FCC, IC | A013700013 |
1 x Gateway (B Code: B137004) 1 x Wall Mounting Kit |
|
R1520LG-AD-4L-A35GL NA 1GB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
902 ~ 928 MHz | FCC, IC | A013700021 |
1 x Gateway (B Code: B013700014) 1 x Wall Mounting Kit |
|
R1520LG-AC-4L-A35GL Asia 1GB RAM |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
AS923 | – | A013700023 | 1 x Gateway (B Code: B013700019) |
Application
Specification
System Architecture
| Operating System | RobustOS Pro |
| CPU | i.MX 6ULL, 792 MHz |
| RAM | 512MB |
| Flash | 8 GB eMMC |
Cellular
| Supported Technologies | 4G/LTE, 3G, 2G |
| Antennas | 2 (MAIN + DIV) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 2 x 10/100Mbps – 1 x WAN + 1 x LAN or 2 x LAN (Default) |
| Magnet Isolation Protection | 1 KV |
PoE In (Optional)
| PoE Ports | ETH0 |
| PoE Standards | 802.3at PD |
LoRa
| Antennas | 1 |
| Connector | SMA-K |
| Frequencies |
US915 CN470 EU868 AU915 |
| Max transmitted power | +25 dBm |
| Max sensitivity | -140 dBm |
| Channel capacity | Supports up to 8 channels receive data simultaneously |
Serial Ports
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 3-pin 3.5 mm female socket |
| ESD Protection | ±8 KV air discharge, ±4 KV contact discharge |
| Baud Rate | 300 bps to 115200 bps |
| Signal Definition |
RS-232: TXD, RXD, GND RS-485: A, B, GND |
Wi-Fi
| Wi-Fi Antennas | 1 |
| Connector | RP-SMA-K |
| Standards | 802.11b/g/n, supporting AP and Client modes |
| Frequency Bands | 2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
Other Interfaces
| Reset Button | 1 x RST |
| LED Indicators | 1 x LORA, 1 x RUN, 1 x MDM, 1 x USR, 1 x WLAN, 1 x RSSI |
| Watchdog | External |
| USB | 1 x USB 2.0 (host), Type A, 5 V, 500 mA |
Power Supply & Consumption
| PSU Connector | 4-pin Micro-Fit socket |
| Input Voltage |
12/24/48 V DC, 9 ~ 60 V DC PoE-PD: 42.5 ~ 57 V DC Reverse polarity protection, surge protection |
| Power Consumption |
Idle: 1.5 W@12 V Max: 10 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 238.5g |
| Dimensions | 46 x 90 x 105 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -20 – +60°C |
| Storage Temperature | -40 – +85°C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| LoRaWAN Protocols | V1.0.4 Class A/Class B/Class C |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
| Flash available for SDK | 6GB |
| RAM available for SDK | 256MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 2 EN 61000-4-11 (Dips) |
