EG5101
EG5101

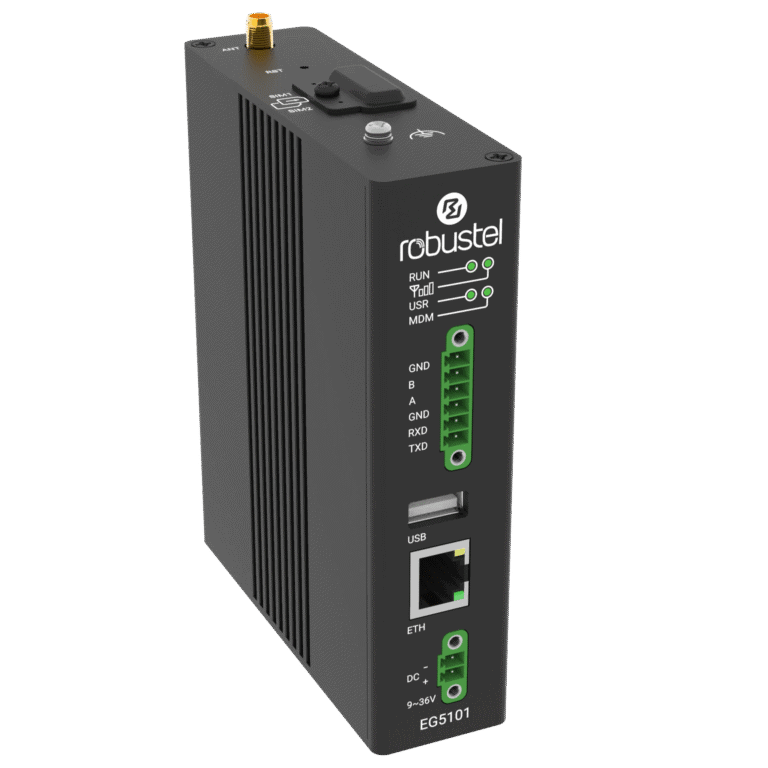

Industrial edge computing gateway with Dual-SIM 4G LTE Cat-1, Serial and a Debian-based OS
The Robustel EG5101 is an industrial edge computing gateway that combines LTE Cat-1 backhaul with on-device processing for cost-sensitive deployments. Powered by an NXP i.MX 6ULL (792 MHz) and 8 GB eMMC, it runs RobustOS Pro (Debian 11) with Docker support, enabling lightweight, containerized applications for protocol bridging, buffering, and local preprocessing.
Dual-SIM redundancy and Ethernet WAN provide resilient connectivity, while an enterprise VPN suite (IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN) secures links to your control systems. For legacy and industrial equipment, the EG5101 includes 1×RS-232 and 1×RS-485 interfaces, simplifying direct connections to PLCs, meters, and instruments alongside IP devices.
A wide operating temperature range and cabinet-friendly mounting suit field panels and plant rooms. Fleet operations scale through RCMS for centralized monitoring, configuration, and firmware updates.
Result: a compact, open platform that delivers reliable connectivity and practical edge capability for smart metering, asset tracking, and distributed monitoring.
Features
- Industrial-grade LTE Cat 1 bis connectivity
- 8 GB eMMC Flash storage and ARM compute engine for edge applications
- Docker containerization with 50,000+ Debian-compatible packages
- 1 x RS-232 + 1 x RS-485 interfaces for PLC/legacy device integration
- Dual-SIM redundancy for redundant communications
- Wide operating temperature range for industrial applications
- Multi-language SDK support (C/C++/Java/Python/Node.js) and open toolchain
- Enterprise VPN suite (IPsec/OpenVPN/GRE/L2TP/PPTP/ DMVPN) and firewall policies
- RCMS platform (Robustel Cloud Management System) for large-scale device management
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The Robustel EG5101 is an industrial edge computing gateway delivering LTE Cat 1 bis cellular backhaul and ARMv7-based processing. Powered by an NXP i.MX 6ULL processor (792MHz), it combines cellular routing and embedded computing in a single platform. The Debian 11 (bullseye) based operating system supports Raspberry Pi-compatible applications, while Docker enables containerized deployment for resource-efficient edge workloads.
Integrated with RobustOS Pro - Robustel’s hardened OS - the EG5101 provides enterprise-grade security (VPN/IPsec, smart roaming) and SMS-based remote management. Designed for cost-sensitive IoT deployments, it serves as a converged cellular router and embedded edge compute node for smart metering, asset tracking, and distributed monitoring in harsh industrial environments.
The Robustel Cloud Manager Service (RCMS) is a unified cloud-based platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
|
EG5101-B-4E-A31EU 1GB DDR3 EMEA + ANZ |
4G LTE FDD: B1/3/5/7/8/20/28 | CE, RCM, CB, UKCA | A013000007 |
1 x Gateway (B Code: B130002) 1 x DIN Rail Mounting Kit |
|
EG5101-B-4E-A31EU 1GB DDR3 EMEA + ANZ |
4G LTE FDD: B1/3/5/7/8/20/28 | CE, RCM, CB, UKCA | A013000008 |
1 x Gateway (B Code: B130002) 1 x Cellular Antenna 1 x Power Adapter 1 x DIN Rail Mounting Kit |
Application
Specification
System Architecture
| Operating System | RobustOS Pro |
| CPU | i.MX 6ULL, 792 MHz |
| RAM | 512 MB DDR3 / 1 GB DDR3 |
| Flash | 8 GB eMMC |
Cellular
| Supported Technologies | 4G/LTE Cat-1 |
| Antennas | 1 (MAIN) |
| Connector | SMA-K |

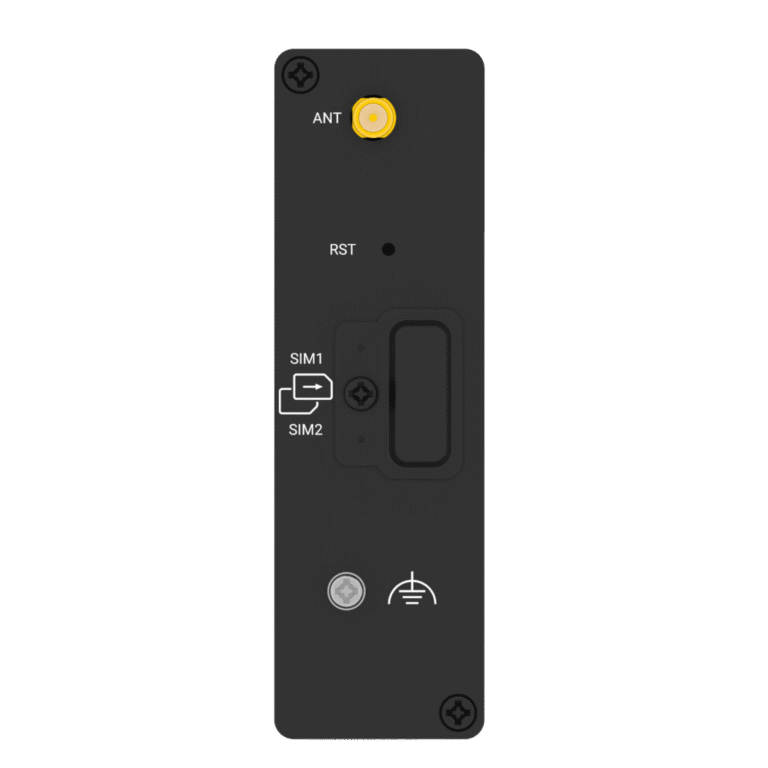

| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 1 x 10/100Mbps |
| Magnet Isolation Protection | 1 KV |

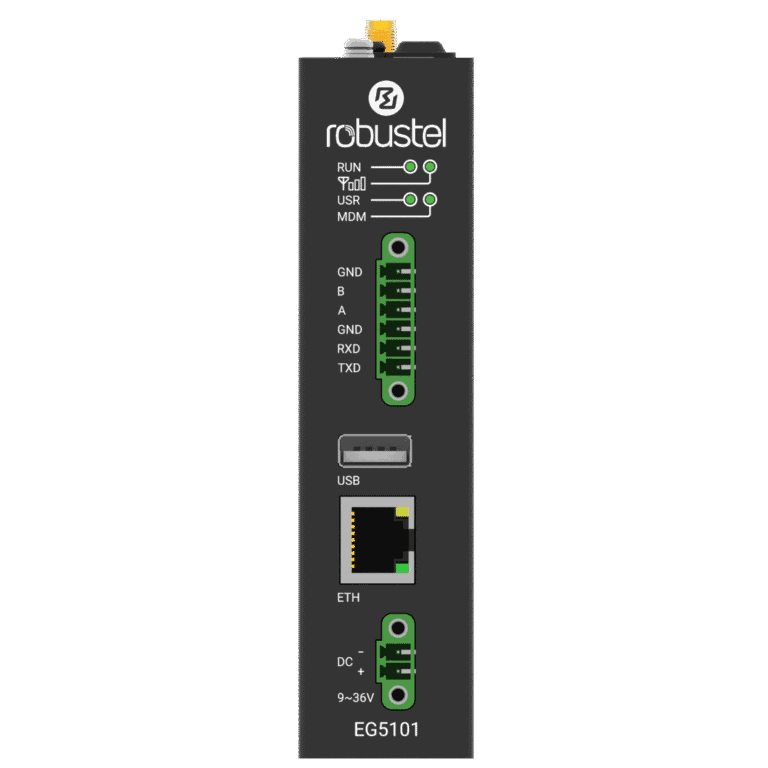

Serial Port
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 6-pin 3.5 mm terminal block with lock |
| ESD Protection | 8 KV air, 4 KV contact |
| Baud Rate | 300 bps to 115200 bps |
| Signal Definition | RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), GND |
Other Interfaces
| Reset Button | 1 x RST |
| LED Indicators | 1 x RUN, 1 x RSSI, 1 x USR, 1 x MDM |
| LED Indicators | 1 x RUN, 1 x RSSI, 1 x USR, 1 x MDM |
Ethernet
| Ethernet Ports | 1 x 10/100Mbps |
| Magnet Isolation Protection | 1 KV |
Serial Port
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 6-pin 3.5 mm terminal block with lock |
| ESD Protection | 8 KV air, 4 KV contact |
| Baud Rate | 300 bps to 115200 bps |
| Signal Definition | RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), GND |
Other Interfaces
| Reset Button | 1 x RST |
| LED Indicators | 1 x RUN, 1 x RSSI, 1 x USR, 1 x MDM |
| Watchdog | External |
| USB | 1 x USB 2.0 (host), Type A, 5 V, 500 mA |
Power Supply & Consumption
| PSU Connector | 2-pin 3.5 mm terminal block with lock |
| Input Voltage | 12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection |
| Power Consumption | Idle: 1 W@12 V Max: 5.5 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 374 g |
| Dimensions | 32 x 105 x 134.8 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -20 - +70 °C |
| Storage Temperature | -40 - +85 °C |
| Relative Humidity | 5 - 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| Storage Temperature | -40 - +85 °C |
| Relative Humidity | 5 - 95% RH (non-condensing) |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
| Flash available for SDK | 6GB |
| RAM available for SDK | 256 MB/768 MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| EMI | EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS | EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 2 |
