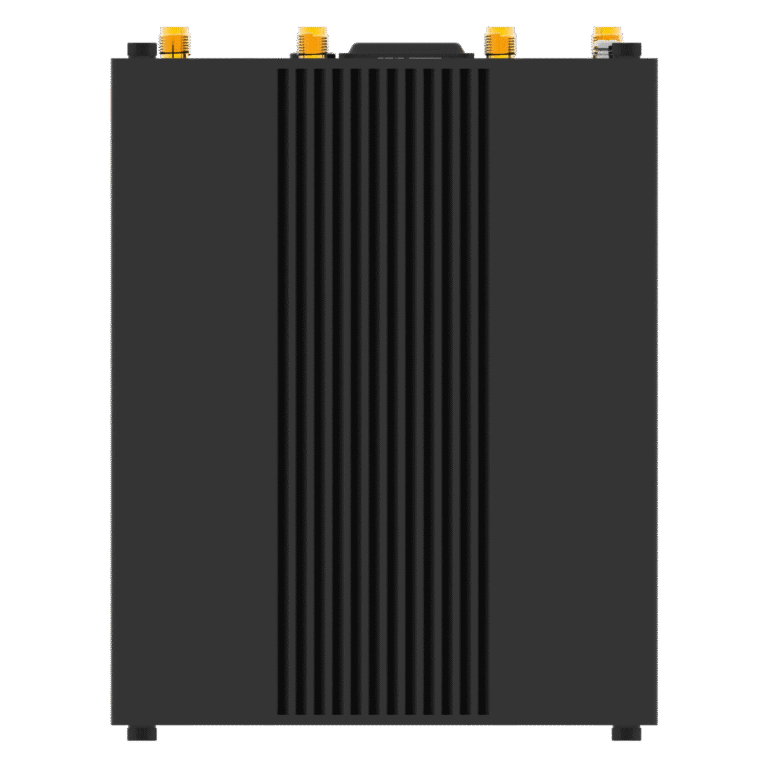

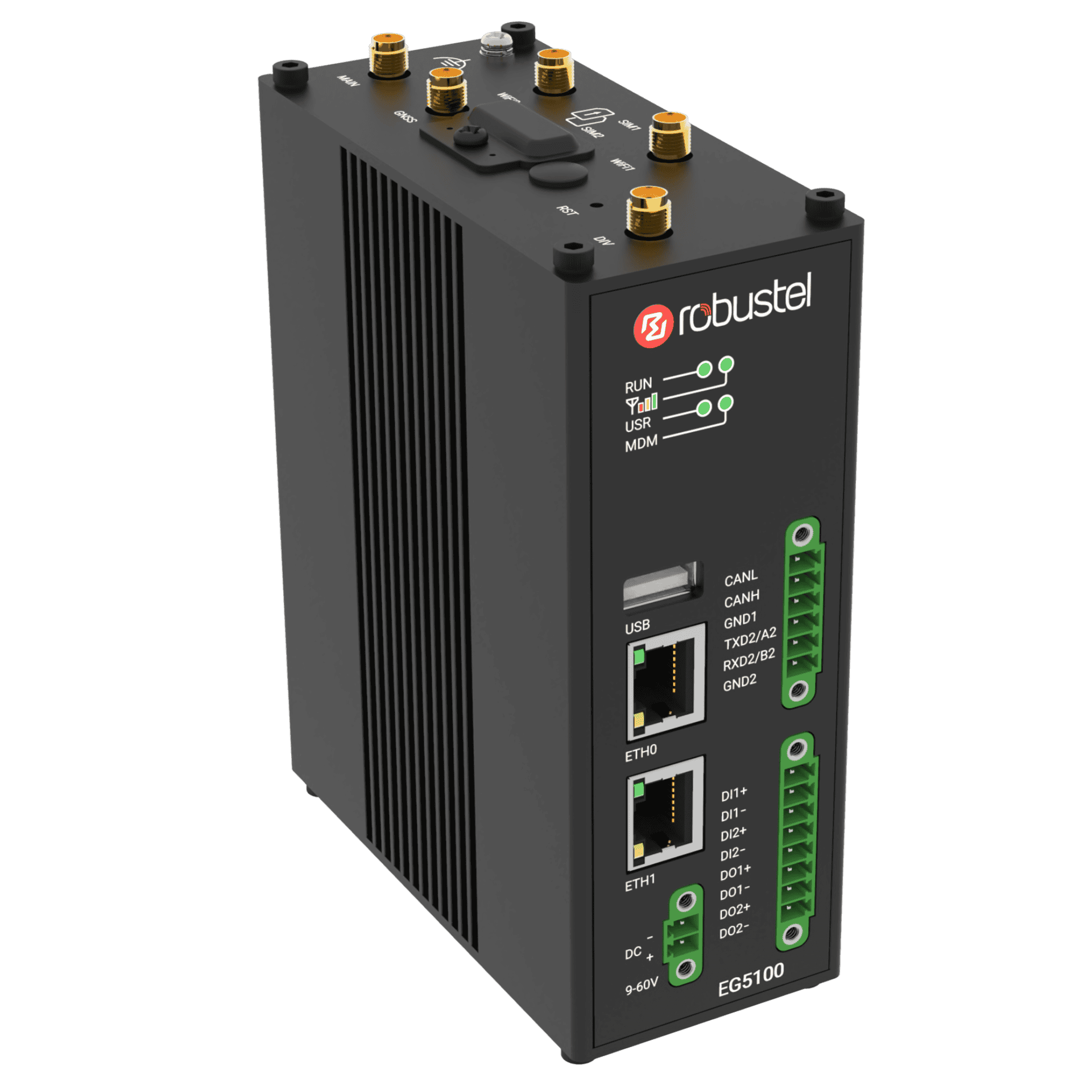

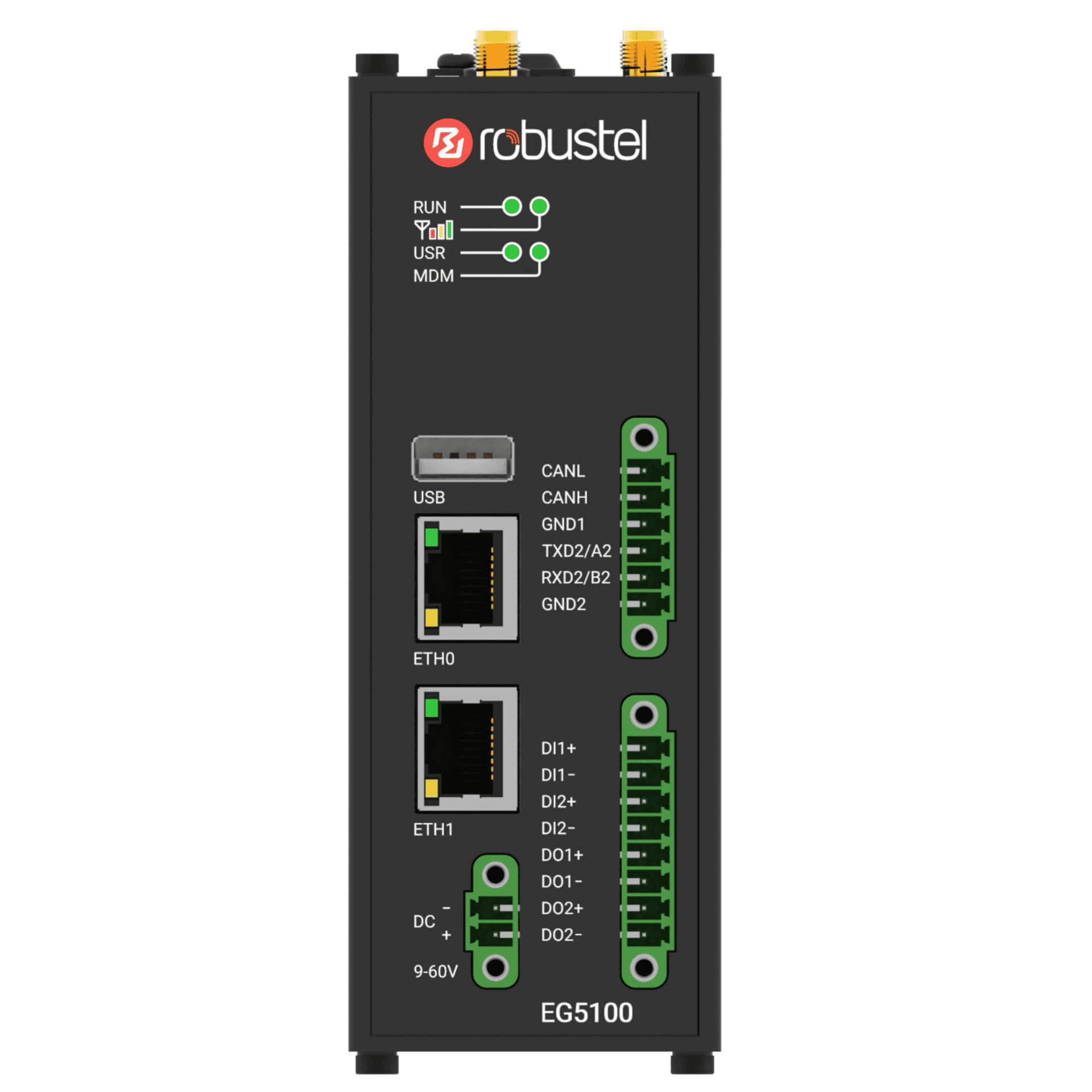

EG5100
EG5100
Industrial edge computing gateway with Dual-SIM 4G LTE, Serial, DI/DO, Bluetooth and a Debian-based OS
The Robustel EG5100 is an industrial edge computing gateway that unifies cellular backhaul and on-box processing in a compact, cabinet-ready platform. Built on RobustOS Pro (Debian 11), it supports Docker containers and thousands of Debian-compatible packages, so you can run your own edge applications alongside secure routing.
A 792 MHz Cortex-A7 CPU with 8 GB eMMC provides dependable compute and storage for protocol bridging, buffering, and local preprocessing. Connectivity is flexible: dual-SIM 4G (with 3G/2G fallback) and Ethernet WAN with link backup keep data moving; VPN options (IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN) and firewall features protect traffic.
Integration is straightforward via software-configurable RS-232/RS-485 (or CAN), 2×DI/2×DO, plus optional 802.11ac Wi-Fi and Bluetooth 5.2. Fleet operations scale through RCMS for monitoring, configuration, and updates.
In short: a robust, open platform for connecting equipment and running edge workloads in industrial environments with simple, centralised management.
Features
- Industrial-grade 4G/3G/2G cellular connectivity with global band support
- 8GB eMMC Flash storage and ARM compute engine for edge applications
- Docker containerization and 50,000+ Debian compatible packages
- Optional 802.11ac Wi-Fi with dual-mode AP/Client operation
- Optional Bluetooth 5.2 compliant
- 2 x software-configurable RS-232/485 ports (or 1 x RS-232/485 + 1 x CAN)
- 2 x DI/DO interfaces for industrial I/O monitoring
- Dual-SIM redundancy and wide operating temperature range
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The Robustel EG5100 is an industrial-grade edge computing gateway combining global 4G/3G/2G cellular backhaul and ARMv7-based edge processing. Its Debian 11 (bullseye) based operating system supports Raspberry Pi-compatible applications, while Docker enables rapid containerized deployment in harsh environments. The device merges cellular routing and embedded computing for real-time edge analytics.
Powered by a 792 MHz Cortex-A7 CPU, the EG5100 runs RobustOS Pro - Robustel’s self-developed OS - to deliver enterprise security (VPN/IPsec, smart roaming) and SMS-based remote management. Designed for mission-critical IoT systems, it integrates cellular connectivity, cybersecurity, and edge compute capabilities into a single ruggedized platform, minimizing deployment complexity.
platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
|
EG5100-A2ECA-NU Global |
— | CE, RCM, CB, UKCA, FCC, IC | A006600707 |
1 x Gateway (B Code: B066712) 1 x DIN Rail Mounting Kit |
|
EG5100-A2ECA-NU Global |
— | CE, RCM, CB, UKCA, FCC, IC | A006600708 |
1 x Gateway (B Code: B066712) 2 x Wi-Fi Antenna 1 x Power Adapter 1 x DIN Rail Mounting Kit |
|
EG5100-A2CCA-4L-A06GL GNSS + Wi-Fi + BLE Global |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA, FCC, IC, NTC | A006600711 |
1 x EG5100 Gateway (B Code: B066708) 1 x DIN Rail Mounting Kit |
|
EG5100-A2CCA-4L-A06GL GNSS + Wi-Fi + BLE Global |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA, FCC, IC, NTC | A006600712 |
1 x EG5100 Gateway (B Code: B066708) 2 x Cellular Antenna 2 x Wi-Fi Antenna 1 x Power Adapter 1 x DIN Rail Mounting Kit |
Application
Specification
System Architecture
| Operating System | RobustOS Pro |
| CPU | ARM Cortex-A7, 792 MHz |
| RAM | 1 GB DDR3 |
| Flash | 8 GB eMMC |
Cellular
| Supported Technologies | 4G/LTE, 3G, 2G |
| Antennas | 2 (MAIN + DIV) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 2 x 10/100Mbps – 1 x WAN + 1 x LAN or 2 x LAN (Default) |
| Magnet Isolation Protection | 1 KV |
Serial Port
| Serial Ports |
2 x RS-232/RS-485 (software configurable) Or 1 x RS-232/RS-485 (software configurable) + 1 x CAN |
| Connector | 6-pin 3.5 mm terminal block with lock |
| ESD Protection | 15 KV air, 8 KV contact |
| Baud Rate | 300 bps to 115200 bps for RS-232/RS-485, up to 1 Mbps for CAN |
| Signal Definition |
RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) CAN: H, L, GND |
Digital Input/Output
| DI/DO Ports | 2 x DI + 2 x DO, wet contact |
| Connector | 8-pin 3.5 mm terminal block with lock (DI/DO) |
| Absolute Maximum VDC | +30 V DC |
| Absolute Maximum ADC | 100 mA |
| Signal Definition | DI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2- |
Wi-Fi (Optional)
| Wi-Fi Antennas | 2 (Wi-Fi 0 + Wi-Fi 1) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
| Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) 5.15 ~ 5.825 GHz (5 GHz ISM band) |
| Security | WPA, WPA2, WEP, WPA3 |
| Encryption | AES, TKIP, WEP64 |
Bluetooth (Optional)
| Bluetooth Antennas | 1 (Multiplexing Wi-Fi antenna) |
| Connector | RP-SMA-K |
| Standards | Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2 |
GNSS/GPS (Optional)
| GNSS Antennas | 1 |
| Connector | SMA-K |
| Technology | GPS |
Other Interfaces
| Reset Button | 1 x RST |
| LED Indicators | 1 x RUN, 1 x Signal, 1 x USR, 1 x MDM |
| Watchdog | External |
| USB | 1 x USB 2.0 (host), Type A, 5 V, 500 mA |
Power Supply & Consumption
| PSU Connector | 2-pin 3.5 mm terminal block with lock |
| Input Voltage | 12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection |
| Power Consumption |
Idle: 3 W @ 12 V Max: 12 W @ 12 V |
| Recommended Power Supply | 12 V DC / 1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 567 g |
| Dimensions | 49 x 105 x 128 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -40 – +70 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
| Flash available for SDK | 6GB |
| RAM available for SDK | 768MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 4 EN 61000-4-11 (Dips) |
